Bolted Joint Calculation

Application Examples B1 .. B5 of VDI 2230-1:2014/2015

Screenshots with HEXAGON SR1+ V19.8

February 20, 2015 by Fritz Ruoss

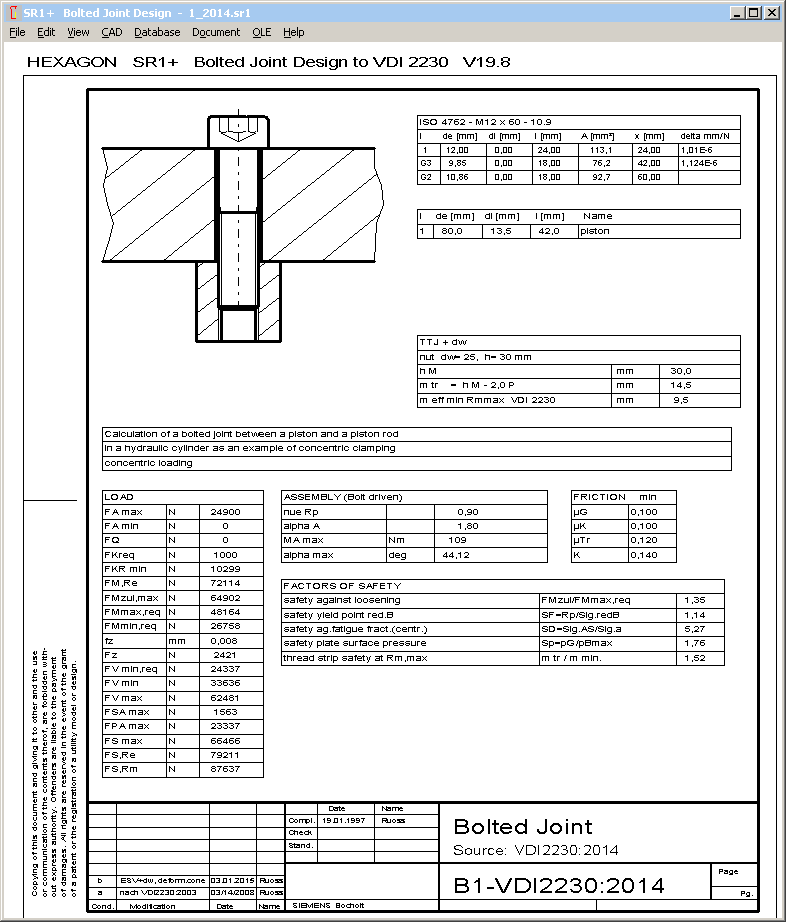

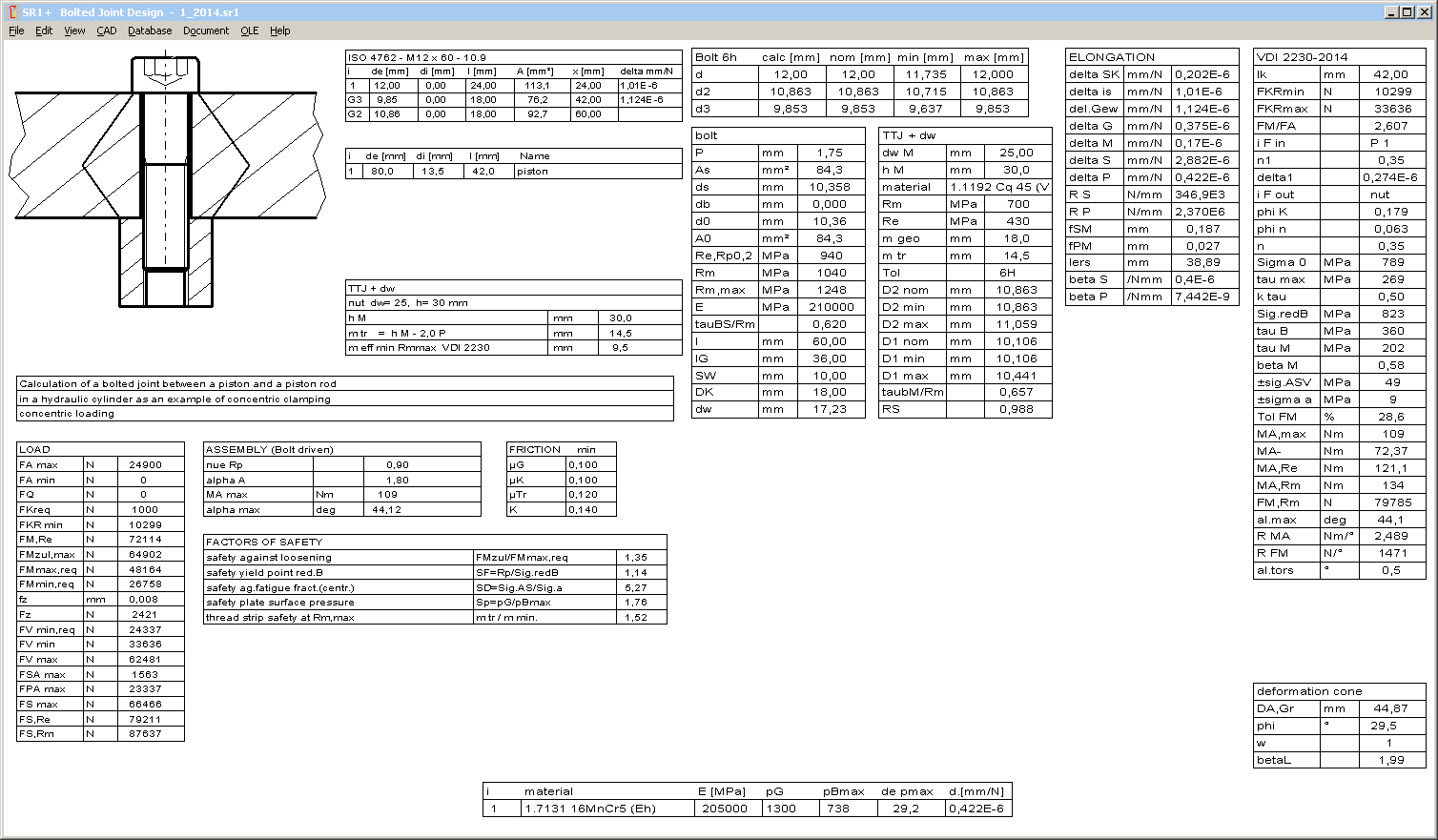

Example B1: Bolted joint between piston and piston rod

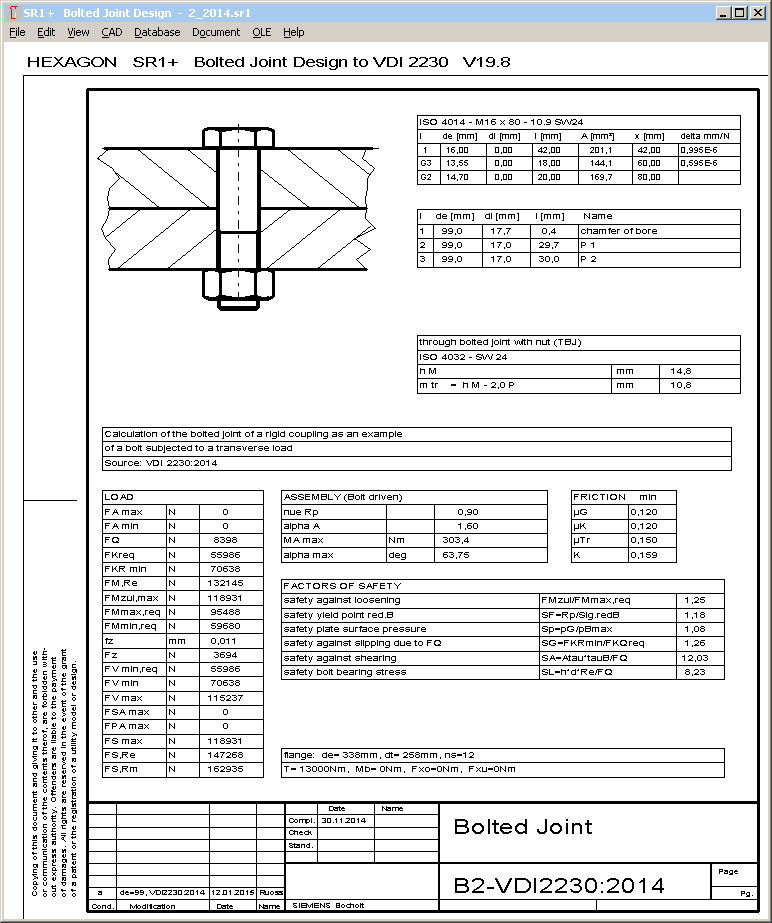

Example B2: Bolted joint of a coupling

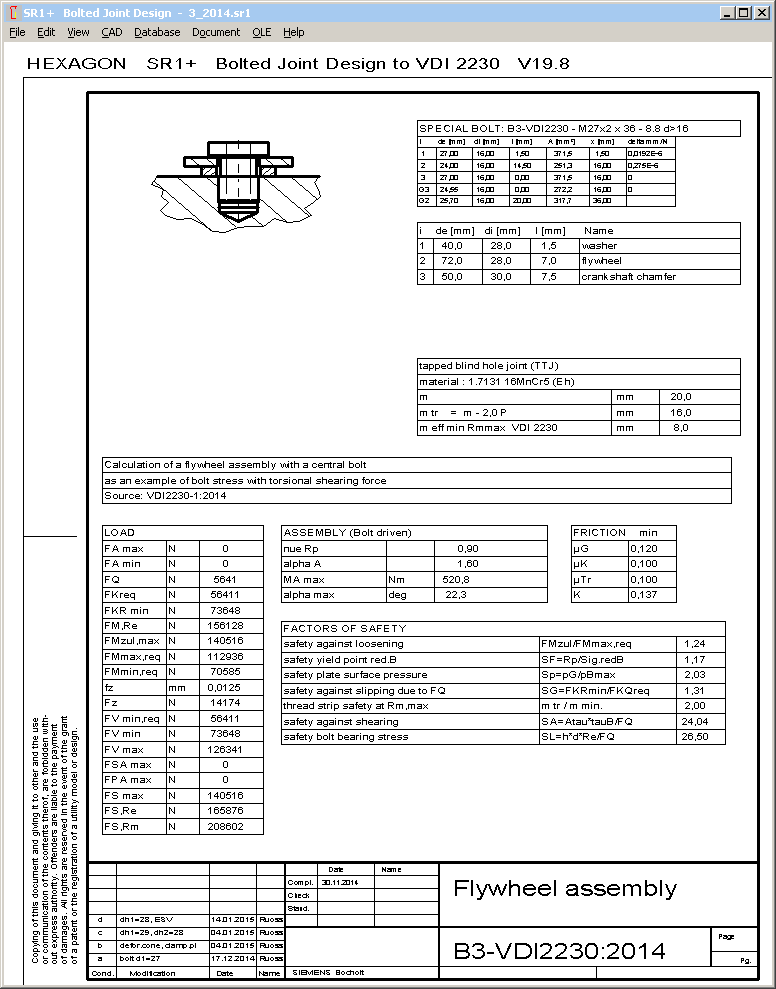

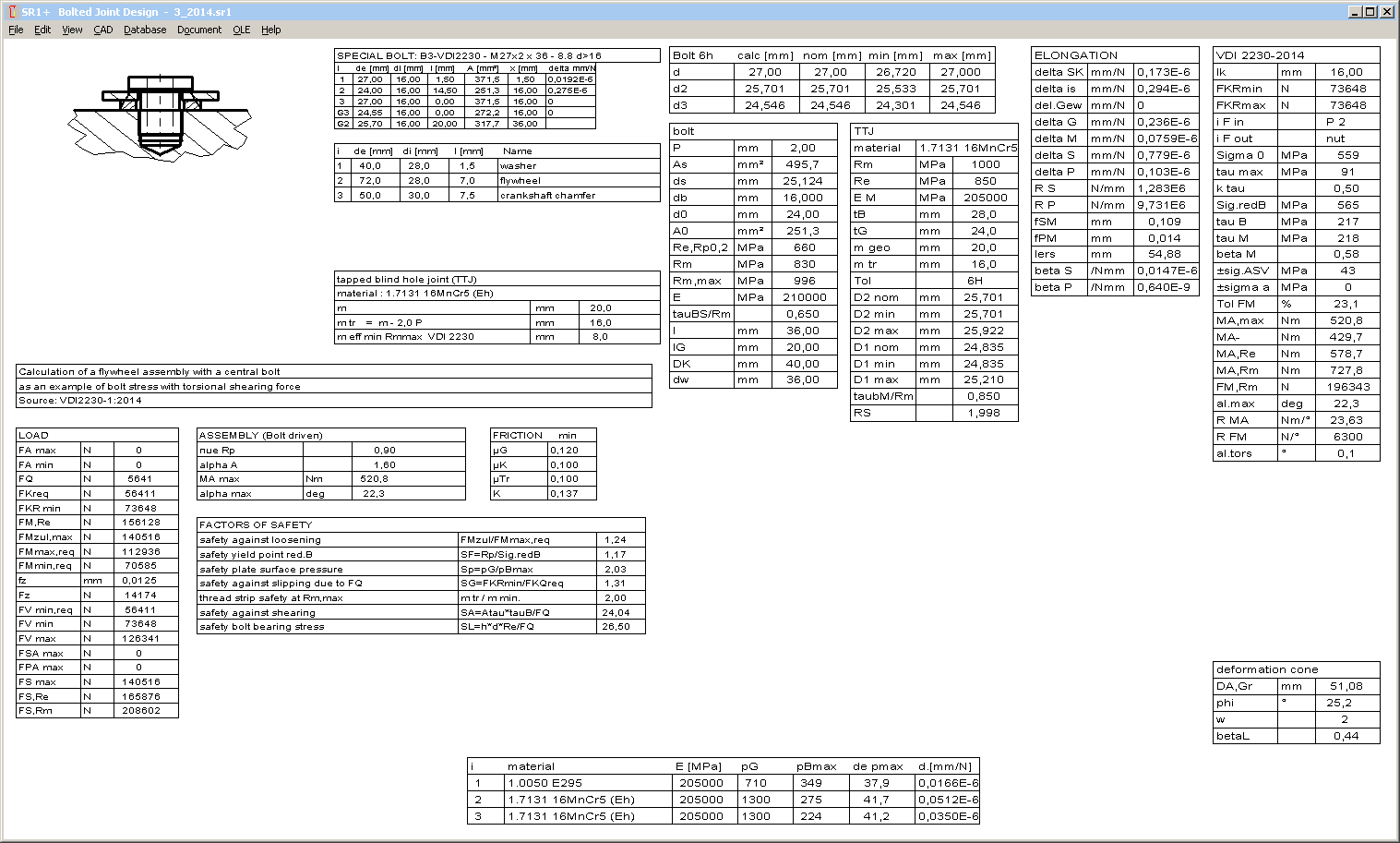

Example B3: Flywheel assembly with central bolt

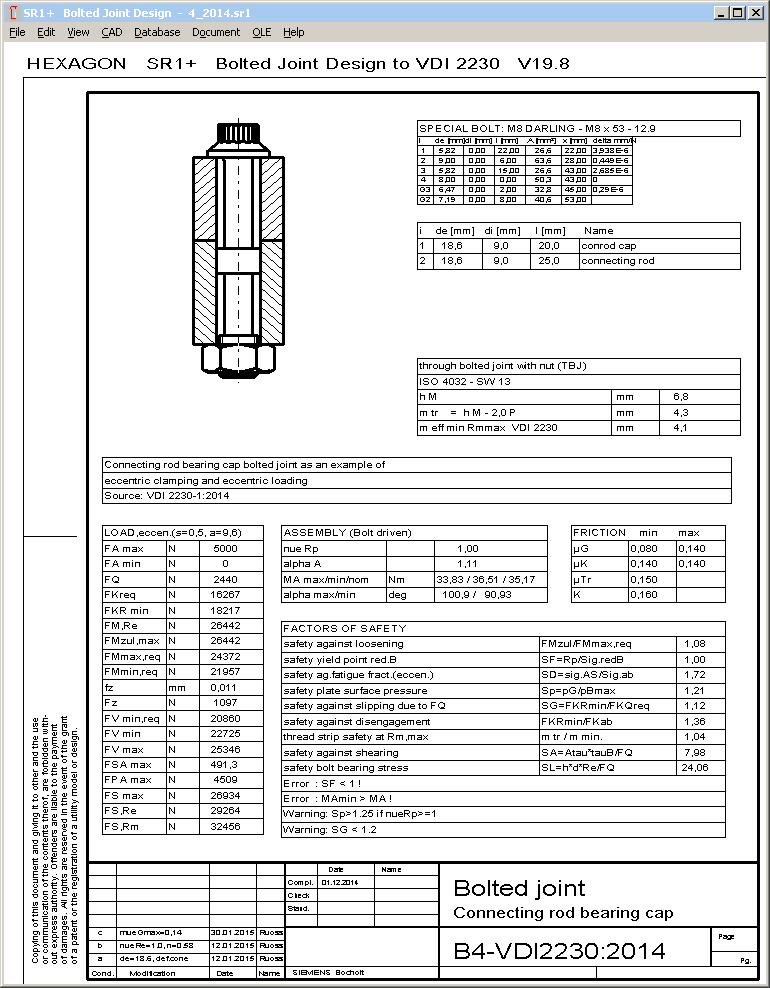

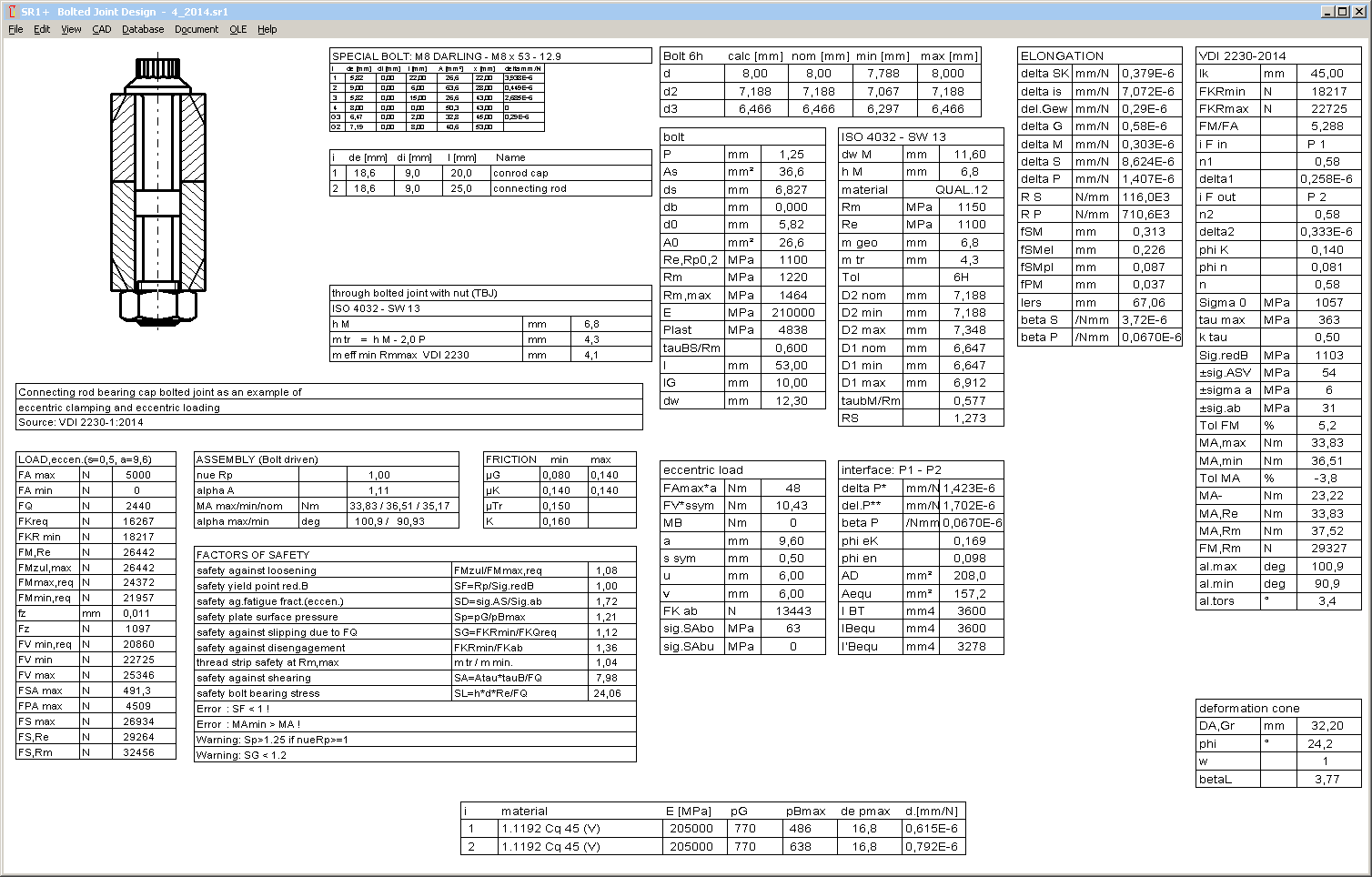

Example B4: Connecting rod bearing cap bolted joint

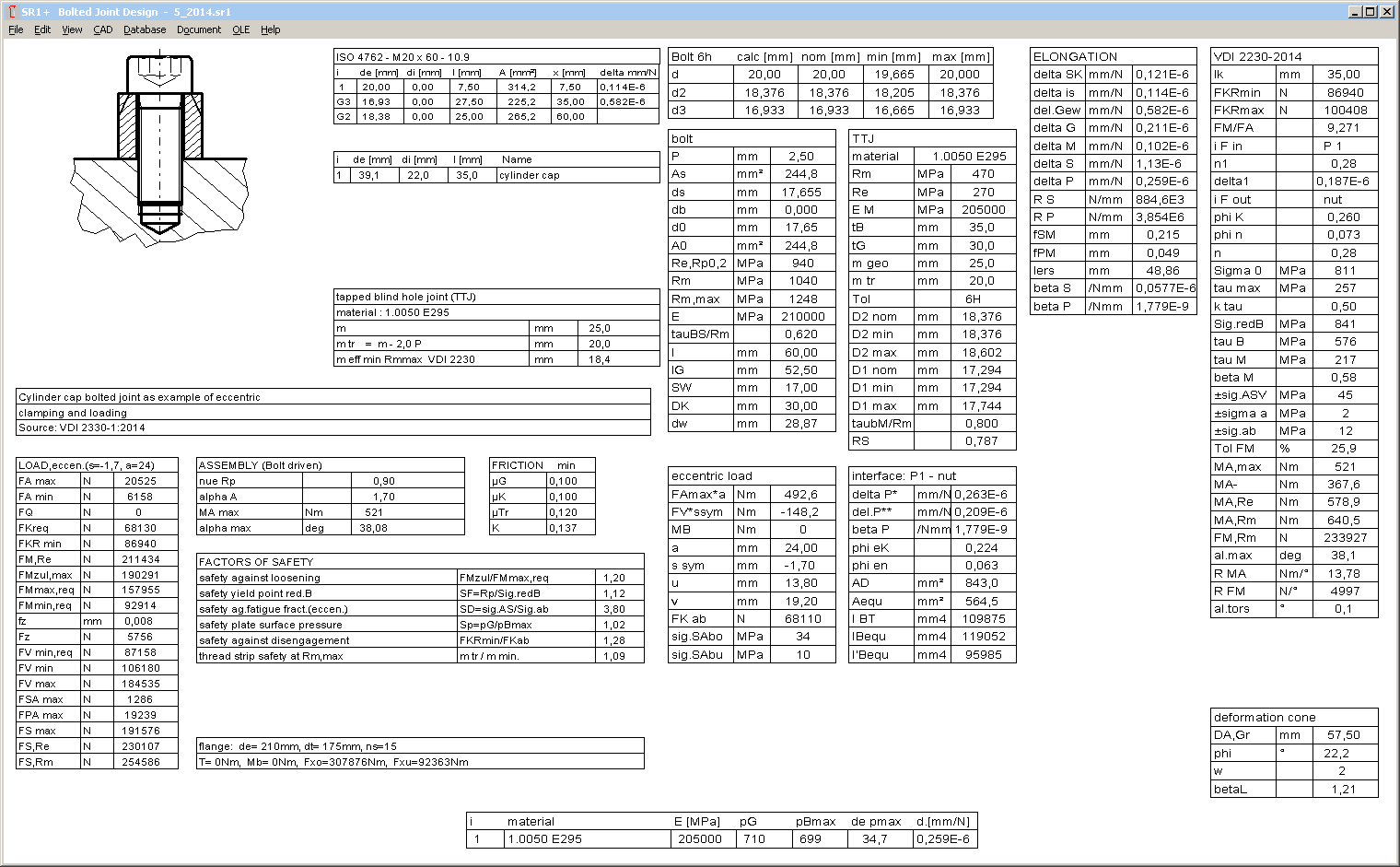

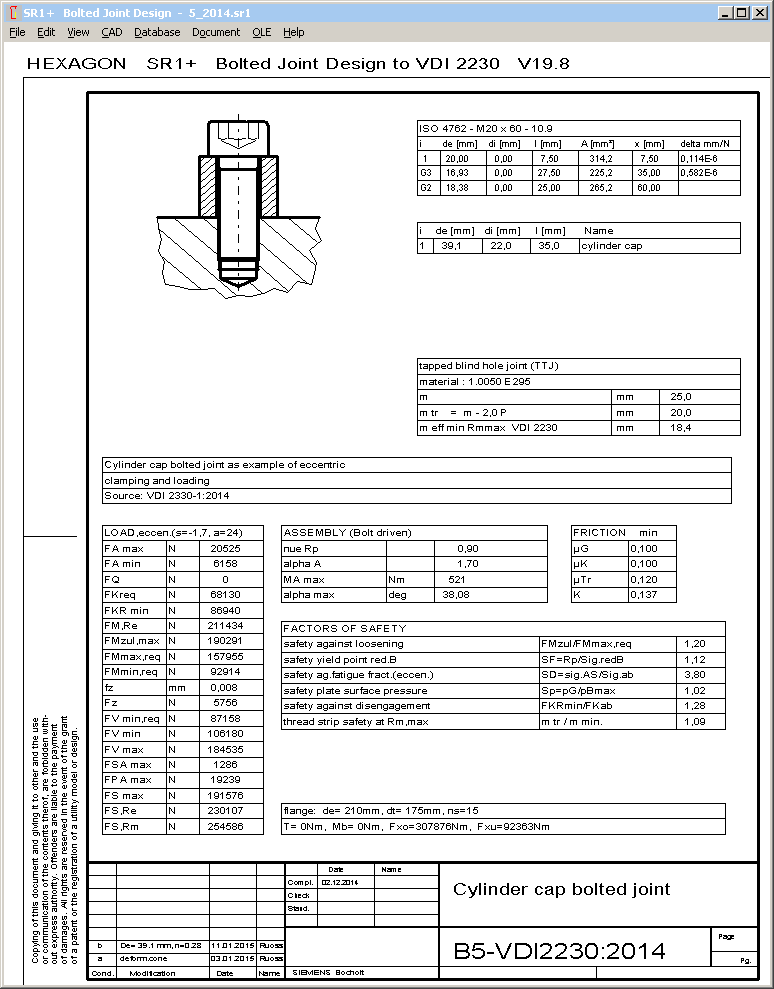

Example B5: Cylinder cap bolted joint
